Product Catalogue
Bobbins, tubes, plates, holders and selected machine parts for textile machinery applications.
Showing 8 of 8
Send us the machine details, component name or reference information and the requirement can be reviewed.
Request a QuoteInjection-moulded simplex bobbin for roving frames. Made to suit the machine; sizes available on request.
Fits
Injection-moulded ring spinning bobbin. Available from 160 mm to 230 mm, in blade and adapter types.
Fits
Injection-moulded parallel tube for cheese winding. 170 mm long, 43 mm outside diameter.
Fits
Injection-moulded card winder plate. 67 × 63 mm, 2 mm thick, with a 40 mm hole.
Injection-moulded open-cage holder for creel and winding applications. Dimensions available on request.
Injection-moulded bobbin plate with a central boss and mounting bore. Dimensions available on request.
Injection-moulded spindle drive gear with three fixing bores. Dimensions available on request.
Injection-moulded fine-pitch nylon gear with three fixing bores, for textile machine drives. Dimensions available on request.
| Product | Dimensions | Fits machines | Actions |
|---|---|---|---|
|

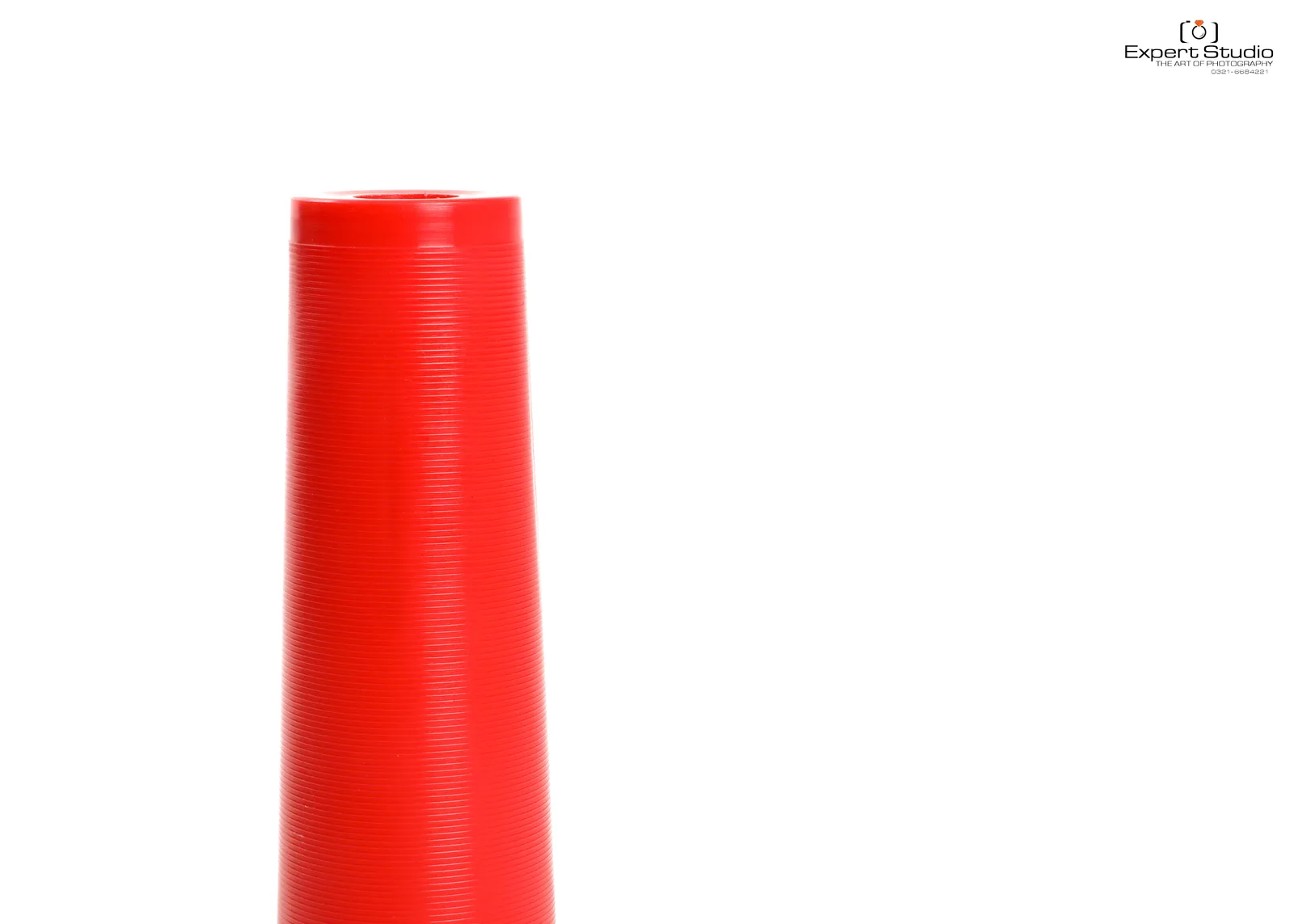

Plastic Simplex Bobbin — Spinning
Bobbins & Machine Parts
|
Available on request | Lakshmi Rieter (LR), Toyoda (Japan), Zinser (Germany), Howa / Marzoli / T.F.O. | Details Enquire |
|

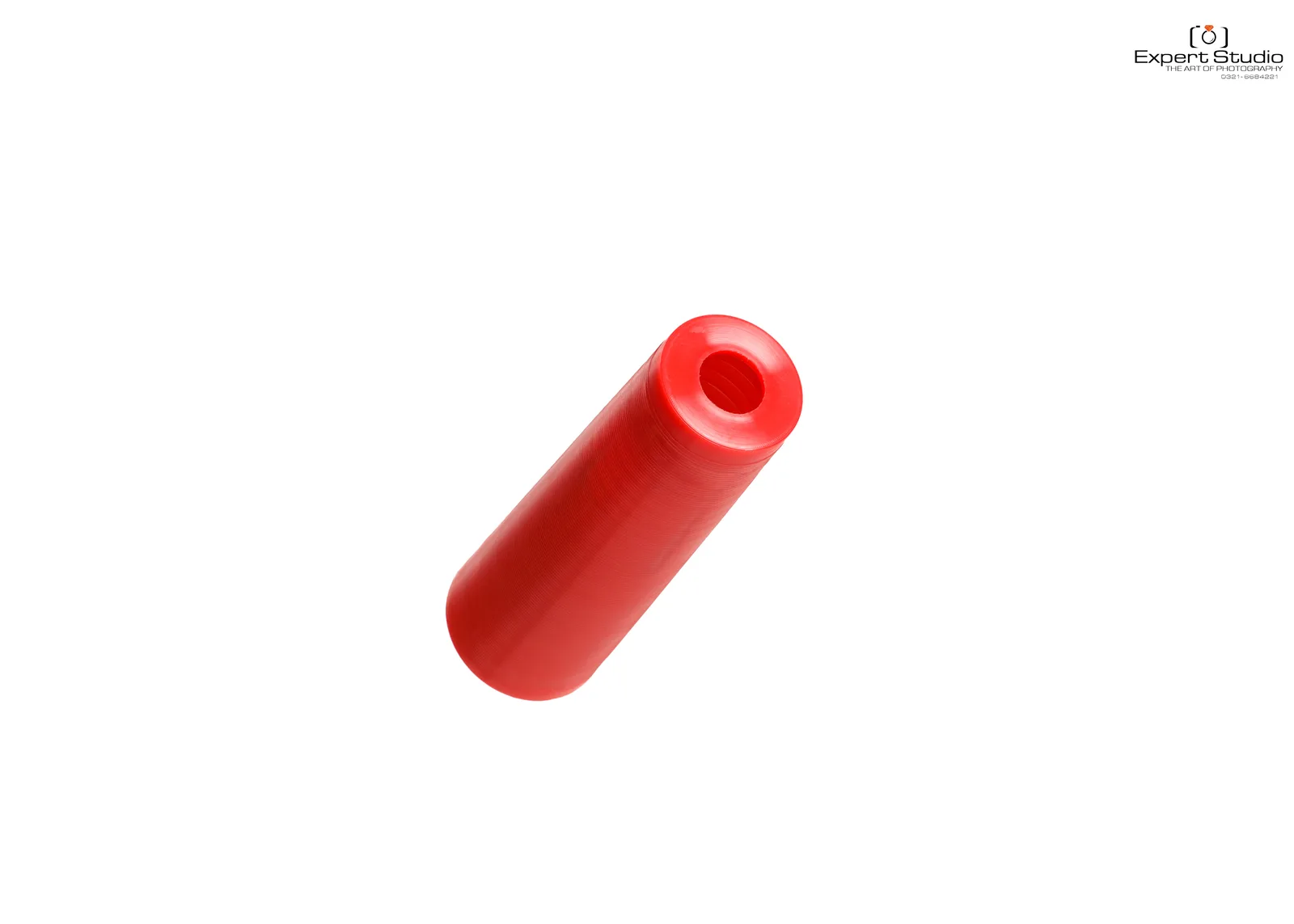

Ring Bobbin
Bobbins & Machine Parts
|
Length 160 mm – 230 mm | Lakshmi Rieter (LR), Zinser (Germany), Toyota (Japan), Marzoli (Italy), Howa / TMT (Japan) | Details Enquire |
|

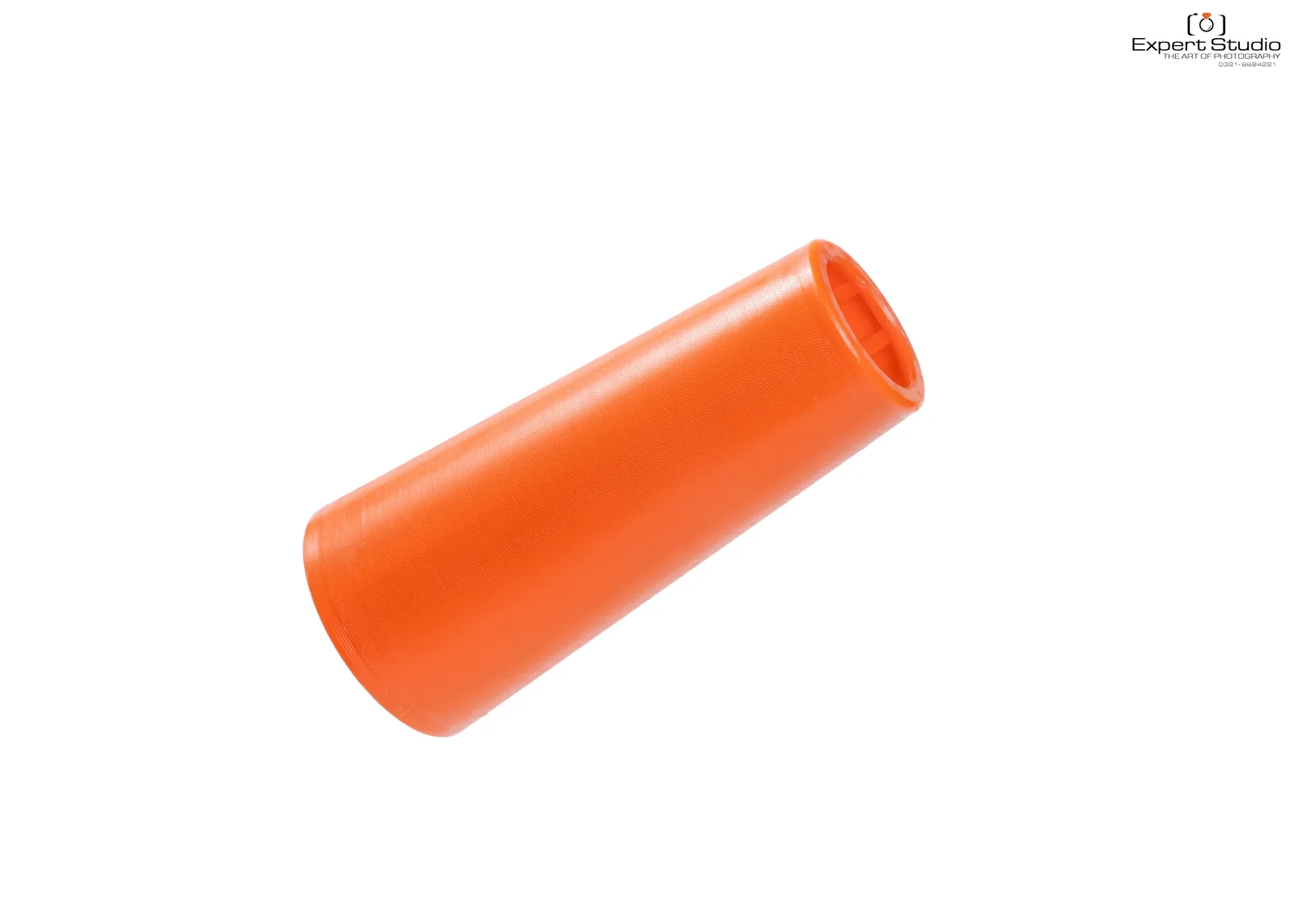

Cheese Tube Bobbin Pipe
Bobbins & Machine Parts
|
Length 170 mm Upper side OD 43 mm Upper side ID 37 mm Lower side OD 43 mm Lower side ID 37 mm |
SSM, Zinser (Germany), Toyota (Japan), Marzoli (Italy), Howa / TMT (Japan) | Details Enquire |
|

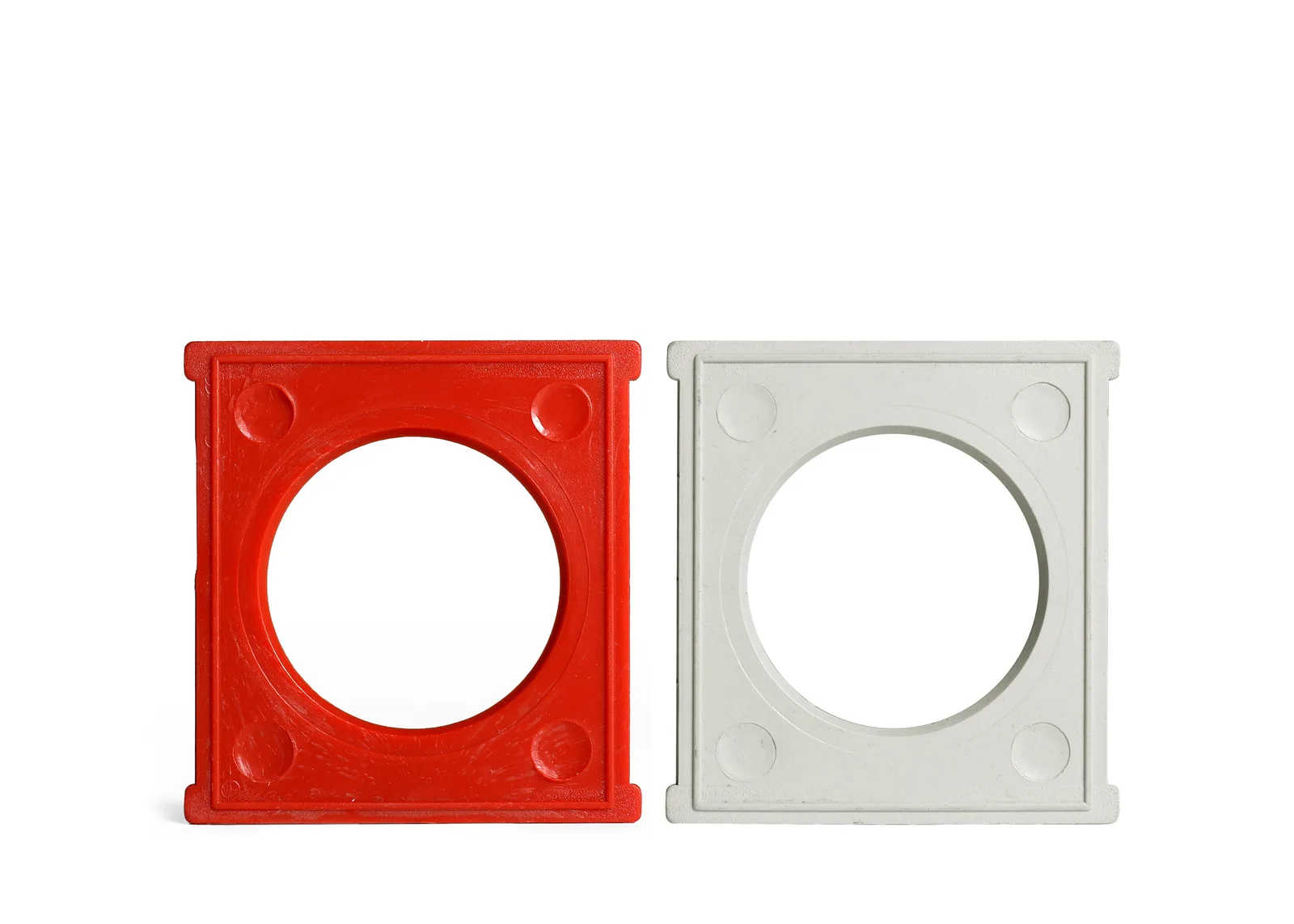

Plastic Plate — Card Winder
Bobbins & Machine Parts
|
Length 67 mm Width 63 mm Thickness 2 mm Hole size 40 mm Weight 5.5 g |
— | Details Enquire |
|

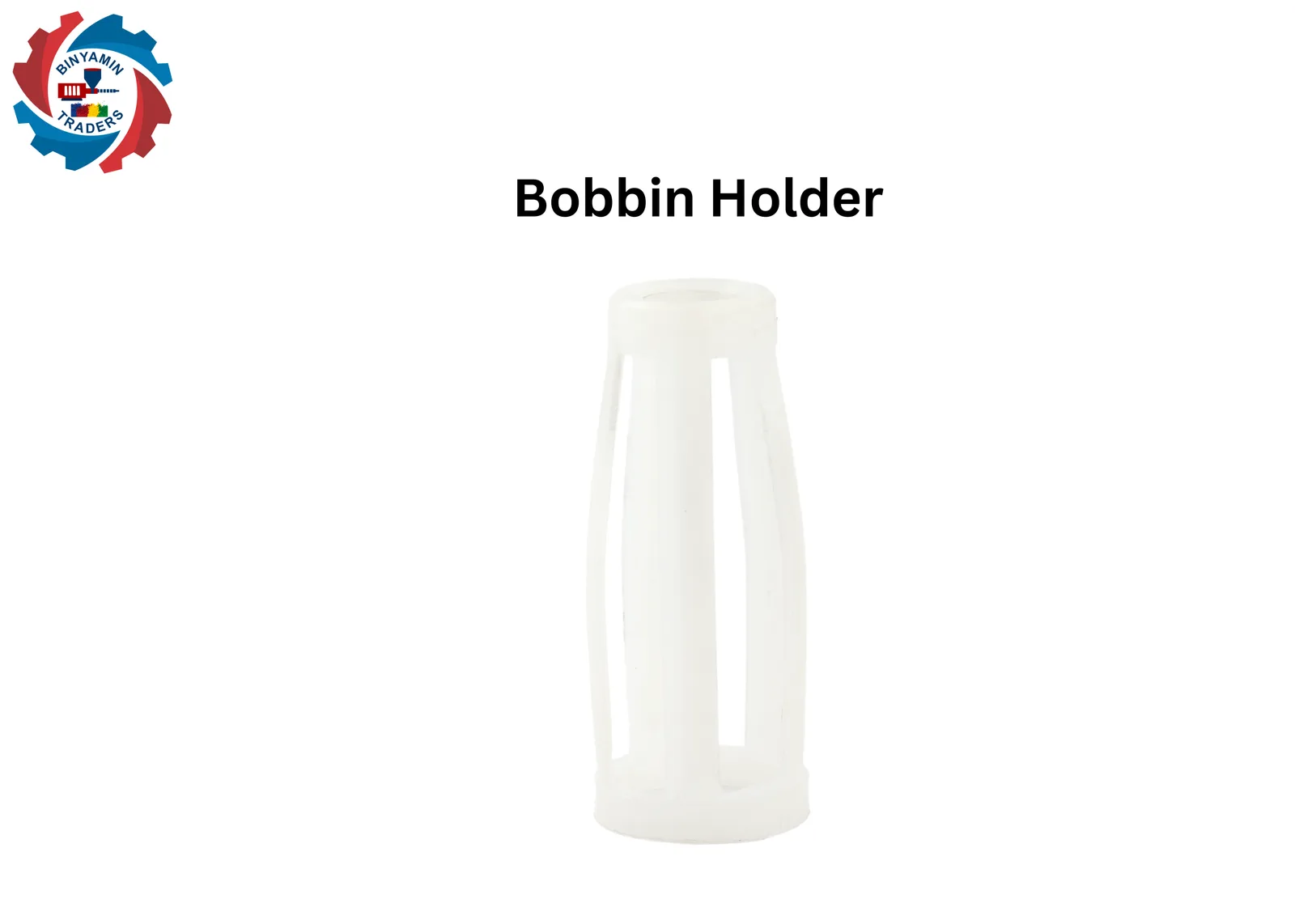

Bobbin Holder
Bobbins & Machine Parts
|
Available on request | — | Details Enquire |
|
Bobbin Plate
Bobbins & Machine Parts
|
Available on request | — | Details Enquire |
|

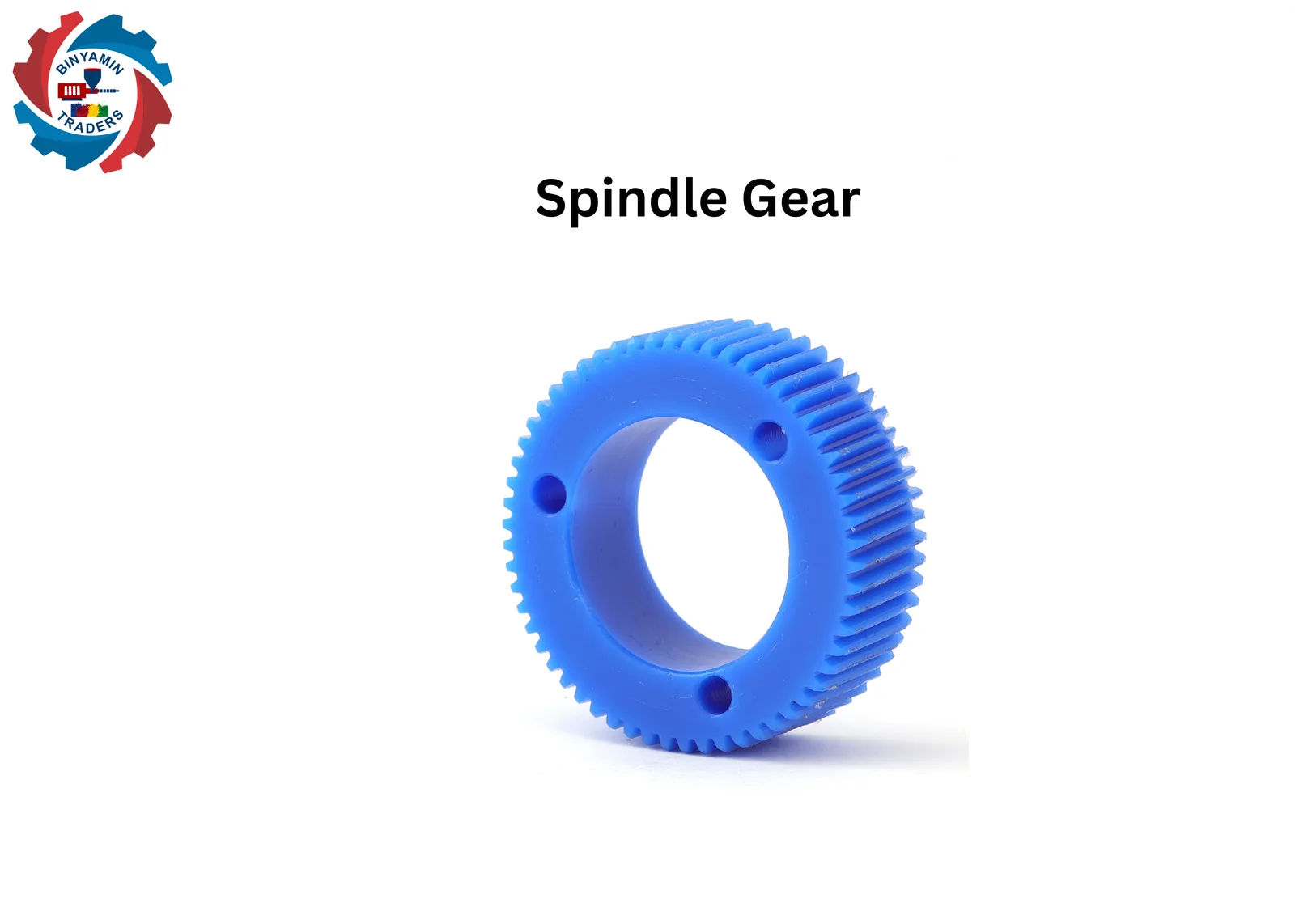

Spindle Gear
Bobbins & Machine Parts
|
Available on request | — | Details Enquire |
|

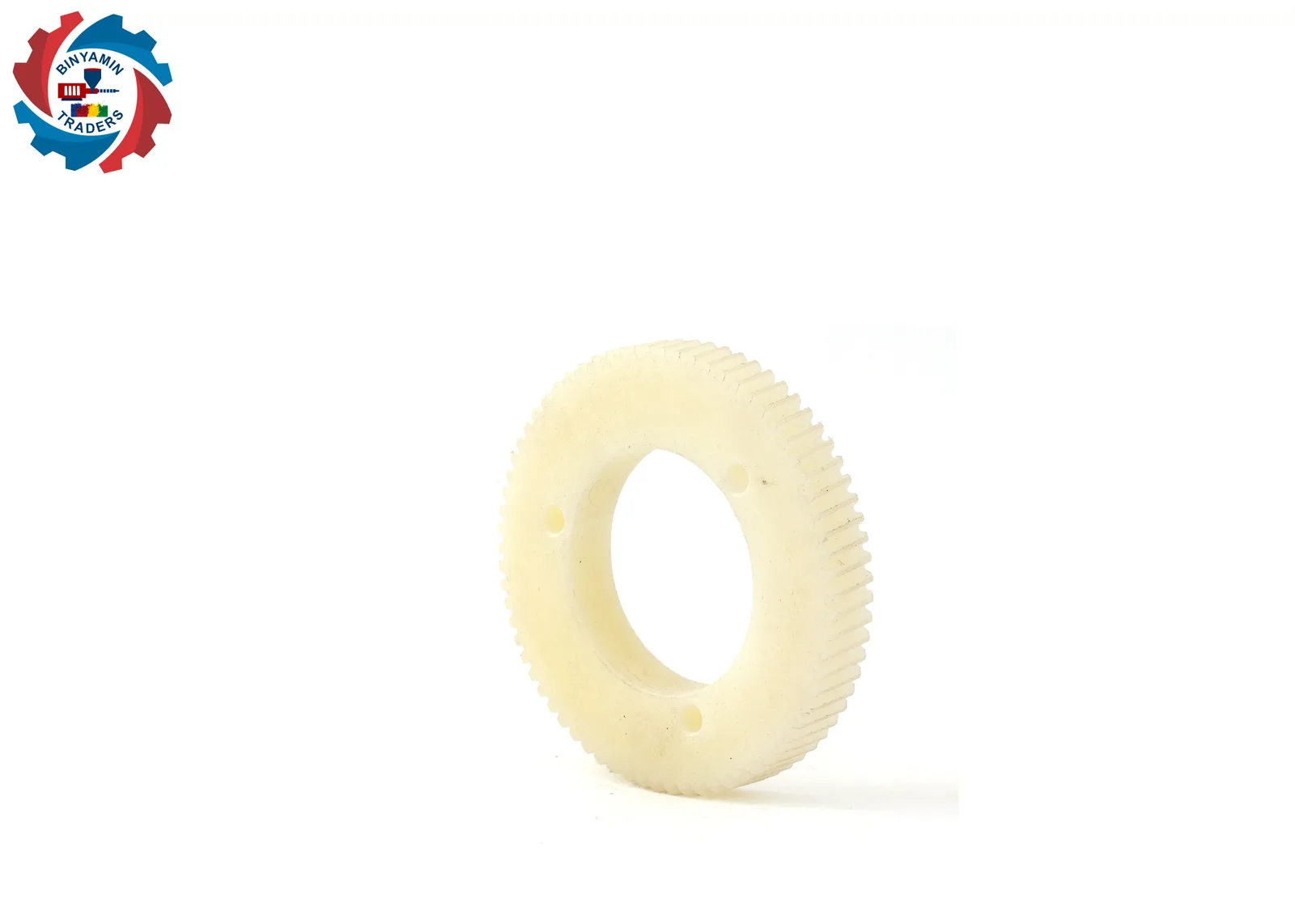

Nylon Gear
Bobbins & Machine Parts
|
Available on request | — | Details Enquire |
